Pentagram

LW230 / LW230H

Laboratory glassware washer

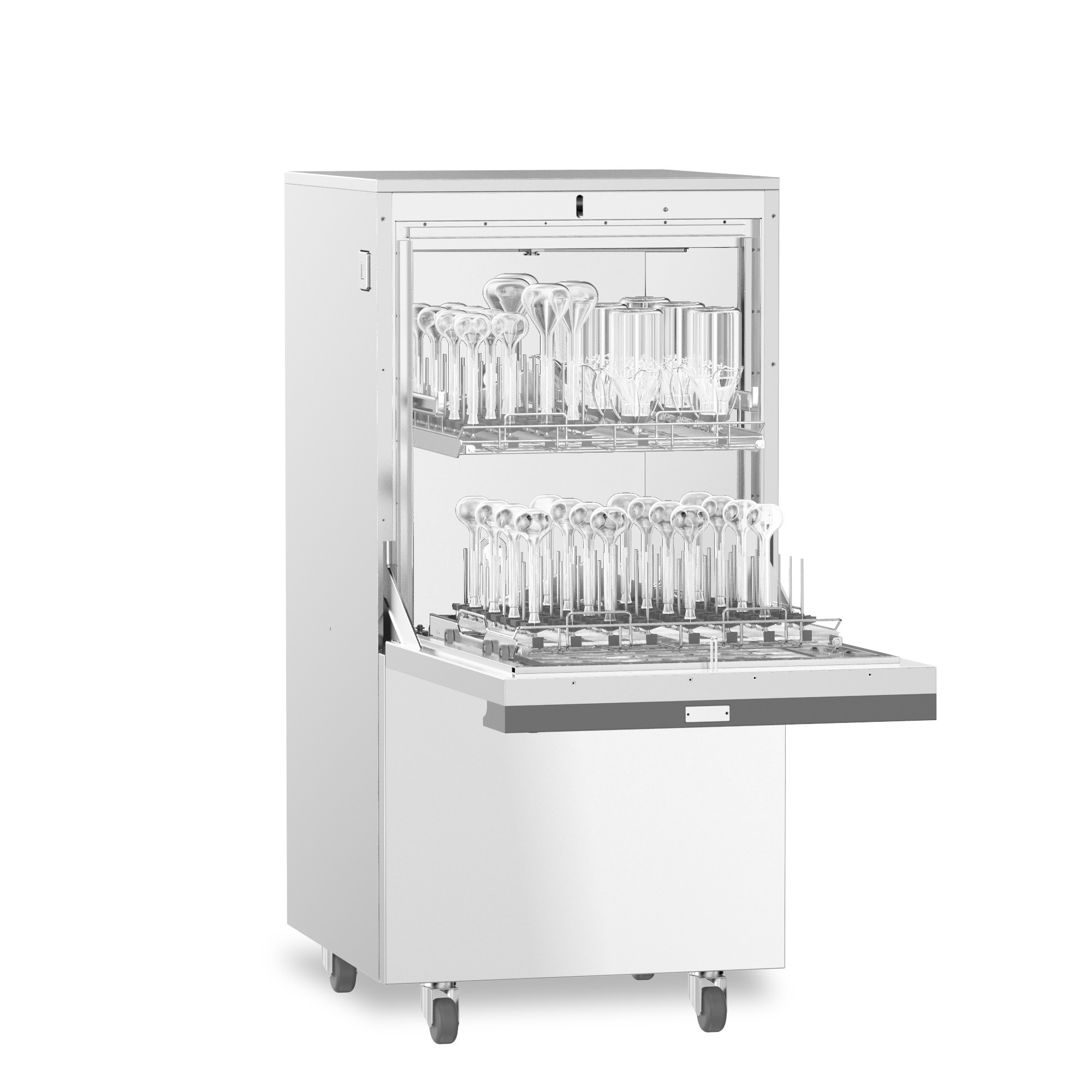

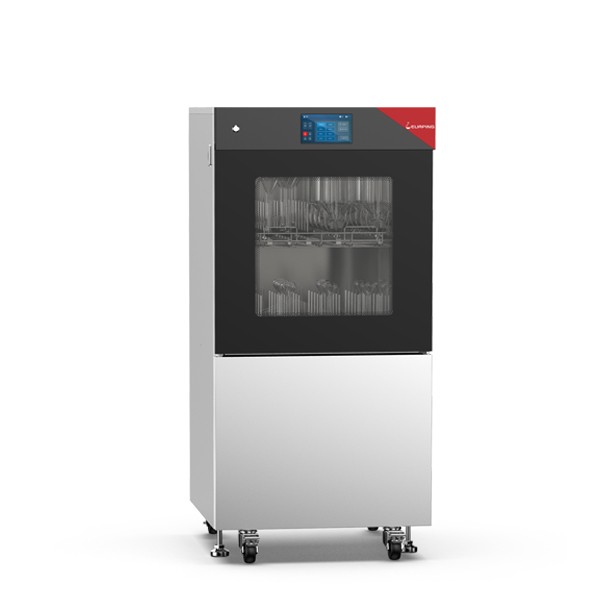

The LW230 and LW230H Laboratory Glassware Washers are advanced automated systems designed for efficient, safe, and reproducible cleaning of laboratory glassware. These models adopt microcomputer chip control technology combined with a 7-inch full-color OLED LCD touch screen operating system, providing intuitive operation and precise control of washing parameters.

The system includes 30 standard cleaning programs such as fast cleaning, grease removal, biological cleaning, and lubricating oil cleaning, along with 120 customizable programs. In each user-defined program, operators can adjust key parameters including water source selection, cleaning temperature, detergent type and dosage, and circulation pump frequency, allowing the washer to be optimized for different laboratory cleaning requirements.

Both models are equipped with a double circulation pump featuring a variable frequency soft-start function, which helps prevent damage to delicate glassware caused by sudden high water pressure when the pump starts. During the washing process, the circulating water flow can be adjusted from 0 to 600 L/min, ensuring flexible cleaning performance for different types of laboratory glassware.

Download Brochure

- +

Benefits

Key Features

🖥 Microcomputer Control System
Advanced microcomputer chip control ensures stable operation and precise washing performance.
📱 7-inch Touch Screen
Full color OLED LCD touch screen for intuitive control and easy program selection.
Multiple Washing Programs
Includes 30 standard programs and 120 customizable programs for various cleaning applications.
💧 Variable Frequency Circulation Pump
Double circulation pump with soft-start function protects delicate glassware.
🔄 Adjustable Water Circulation
Water circulation adjustable up to 600 L/min for efficient cleaning performance.
🧴 Automatic Detergent Dosing
Dual-channel peristaltic pump ensures accurate detergent dosing.
🛡 Comprehensive Protection System
Over-temperature protection for water heating, hot air heating, water pump, and fan.
🌬 HEPA Drying System
Integrated hot air HEPA filtration drying ensures clean and dry glassware.
🔍 Monitoring & Safety Sensors
Includes water leakage monitoring, pipeline pressure monitoring, and flowmeter.
👥 User Management
Supports up to 12 users with four-level authority management.

Specifications

Specifications

Technical Specification LW230 LW230H
Control System Microcomputer control system Microcomputer control system
Touch Screen 7 inch full color touch screen 7 inch full color touch screen
Chamber Material 316 stainless steel 316 stainless steel
Shell Material 304 stainless steel 304 stainless steel
Pipe Material 316 stainless steel + pharmaceutical silicone 316 stainless steel + pharmaceutical silicone
Circulating Water Volume 600 L/min 600 L/min
Printer Interface RS232 RS232
Peristaltic Pump Double channel Double channel
Power Supply 220V, 50Hz 380V, 50Hz
Heating Power 4 kW 9 kW
Chamber Volume 223 L 223 L
Air Volume 110 m³/h 110 m³/h
Inner Dimensions 546 × 573 × 726 mm 546 × 573 × 726 mm
External Dimensions 670 × 760 × 1400 mm 670 × 760 × 1400 mm

Applications

Applications

Applications

🔬 Research Laboratories
Cleaning of laboratory glassware used in scientific research.
💊 Pharmaceutical Laboratories
Reliable cleaning of glassware used in drug development and testing.
🏥 Hospital & Clinical Labs
Automated washing of laboratory bottles, flasks, and testing glassware.
🧬 Biotechnology Laboratories
Cleaning of sensitive laboratory instruments and glass containers.
⚗️ Chemical Laboratories
Removal of chemical residues and contaminants from laboratory glassware.
🌍 Environmental Testing Labs
Cleaning of sampling bottles and analytical glassware used in environmental analysis.
🍽 Food & Beverage Testing
Glassware cleaning for quality control and contamination testing.
🎓 Universities & Academic Institutes
Routine washing of laboratory glassware used in teaching and research labs.
