• Fully automatic washing, rinsing, and drying cycles
• Large 680 L chamber capacity for high-throughput laboratories
• Siemens 7-inch touch screen control panel
• Real-time display of execution parameters
• 10 standard washing programs + 10 editable programs
• Built-in printer interface for washing record documentation
• Six-layer basket system for large glassware capacity
• Stainless steel washing chamber for durability and chemical resistance
• Efficient pipeline injection drying system

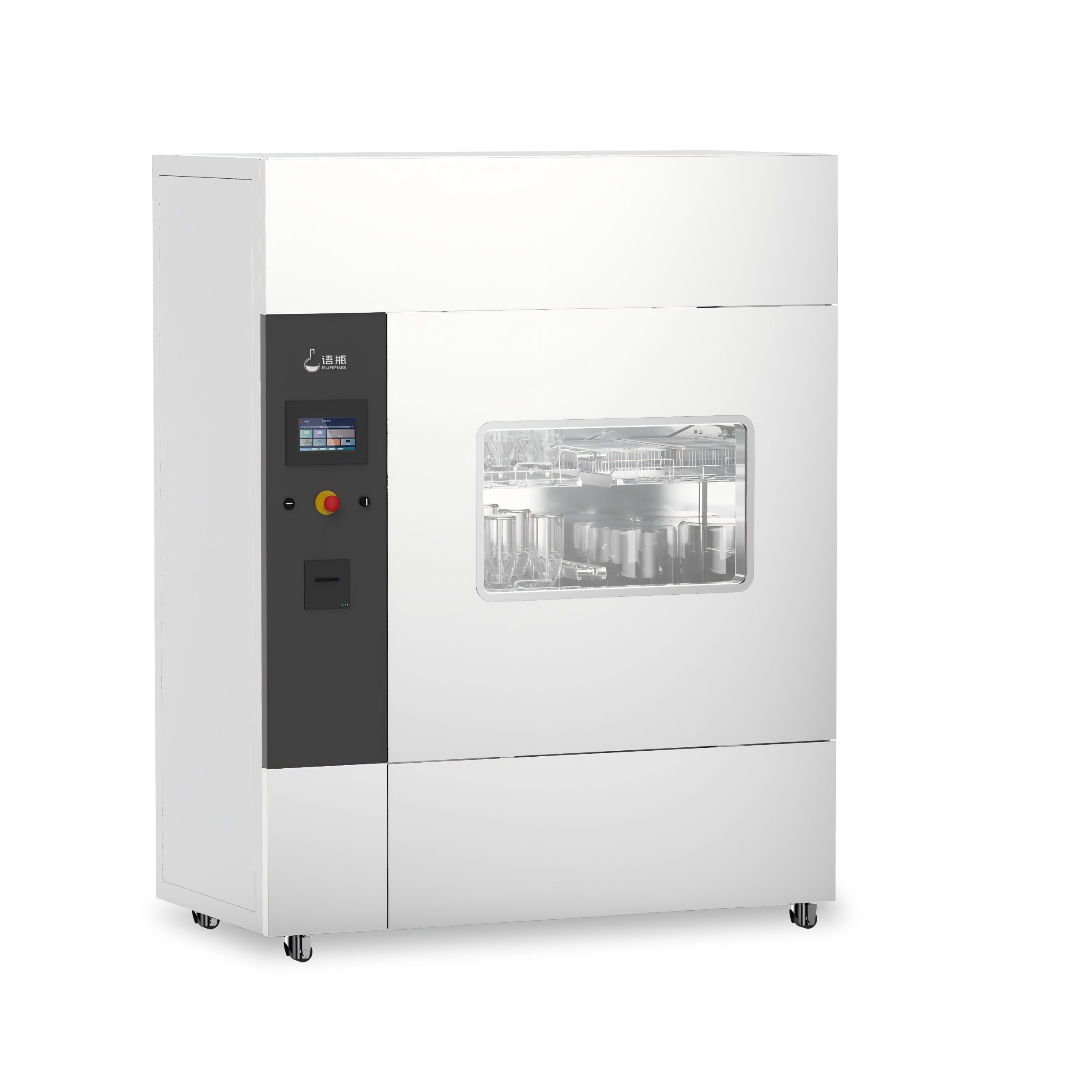

LW640
Laboratory glassware washer
The Laboratory Glassware Washer LW640 is a high-capacity automated cleaning system designed for laboratories requiring efficient, reliable, and contamination-free cleaning of laboratory glassware. The system performs automatic washing, rinsing, and drying cycles, ensuring consistent cleaning performance for various laboratory utensils.
The LW640 is capable of cleaning a wide range of laboratory glassware such as volumetric flasks, triangular flasks, beakers, test tubes, pipettes, vials, culture dishes, and laboratory bottles. With its large 680-liter chamber capacity and six-layer basket system, the washer can process a high volume of glassware in a single cycle, making it ideal for pharmaceutical laboratories, research institutes, hospitals, and industrial laboratories.
Equipped with a Siemens 7-inch touch screen control system, the washer provides easy operation, programmable washing cycles, and real-time monitoring of washing parameters. The integrated pipeline injection drying system ensures efficient drying of glassware, reducing downtime and improving laboratory productivity.
Benefits
Specifications
Specifications
| Parameter | Value |
|---|---|
| Model | LW640 |
| Electrical Configuration | 380 V, 50/60 Hz |
| Maximum Power | 21 kW |
| Control Panel | Siemens 7-inch Touch Screen |
| Standard Washing Programs | 10 |
| Editable Programs | 10 |
| Printer Interface | Built-in Printer |
| Circulation Pump Flow | 0 – 2000 L/min |
| Cleaning Heating Power | 18 kW |
| Detergent Dispenser | Peristaltic Pump |
| Number of Detergent Pumps | 2 |
| Basket Layers | 6 |
| Drying System | Pipeline Injection Drying |
| Drying Power | 8 kW |
| Drying Temperature Range | RT – 120°C |
| Drying Time | 0 – 300 minutes |
| Inner Chamber Dimensions | 1132 × 573 × 1062 mm |
| Chamber Capacity | 680 L |
| External Dimensions | 1561 × 798 × 1980 mm |
Applications
Applications
• Pharmaceutical laboratories
• Research institutes and universities
• Environmental testing laboratories
• Clinical and hospital laboratories
• Food and beverage laboratories
• Biotechnology laboratories
• Chemical analysis laboratories
