Improved Animal WelfareMaintains hygienic cage environments by thoroughly removing contaminants, helping to protect the health and welfare of laboratory animals. |
Automated Cleaning ProcessFully automated washing cycles reduce manual labor and ensure consistent and repeatable cleaning performance. |
High Cleaning EfficiencyHigh-pressure and large-flow spray system ensures thorough washing of cages, lids, metal grids, racks, and drinking bottles. |
Reduced Labor CostsAutomated washing significantly reduces manual cage cleaning time, improving operational efficiency in animal facilities. |
Consistent Cleaning ResultsControlled washing parameters ensure uniform and repeatable cleaning performance for every washing cycle. |
Enhanced Facility HygieneHelps maintain strict hygiene standards in animal rooms, reducing risk of contamination in research environments. |
Reliable OperationRobust design and automated spray cleaning process ensure dependable performance in demanding laboratory environments. |
Supports Research QualityClean and sanitized cages help maintain controlled experimental conditions, improving the reliability of research results. |

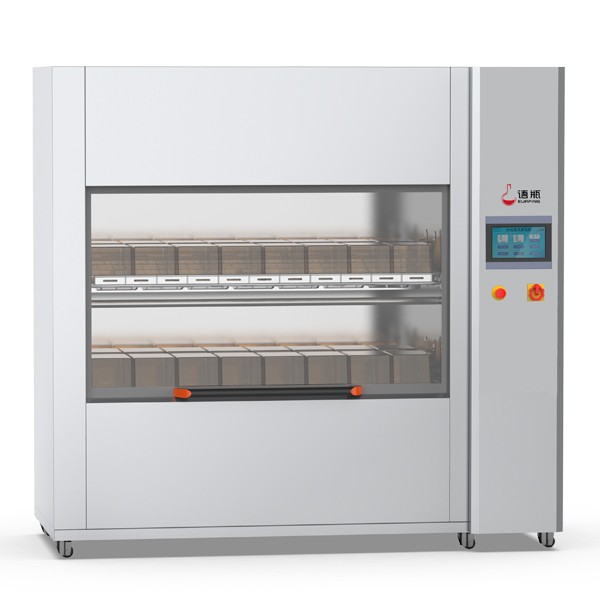

Eurping IVC 100 Cage and Rack Washer
The Eurping IVC 100 Cage and Rack Washer is a fully automated washing system designed for efficient cleaning and sanitation of laboratory animal cages and accessories. It is developed for animal facilities, vivariums, and research laboratories where maintaining strict hygiene conditions is essential.
The system utilizes high-pressure, high-flow spray technology combined with hot water and acid or alkaline cleaning agents to achieve reliable and thorough cleaning. This advanced washing process removes contaminants, residues, and biological waste effectively from cage components.
The automated spray cleaning process is suitable for washing cage boxes, cage lids, metal grids, racks, and drinking bottles, ensuring consistent hygiene standards while reducing manual cleaning efforts.
The Eurping IVC 100 provides uniform cleaning performance, improved operational efficiency, and supports a clean and controlled animal room environment to ensure animal health and reliable research results.
Benefits
Specifications
Specifications
| Technical Specification | IVC 100 |
|---|---|
| Control System | Siemens S7-1200 PLC control system |
| Touch Screen | 10.2 inch full color touch screen |
| Chamber Material | 304L stainless steel |
| Shell Material | 304 stainless steel |
| Pipe Material | 304 stainless steel + pharmaceutical silicone |
| Circulating Pump 1 | 1200 L/min |
| Circulating Pump 2 | Rinsing flow 400 L/min |
| Circulation Pump Feature | Variable frequency soft-start function |
| Door Type | Fully transparent electric lift door |
| Peristaltic Pump | Double channel |
| Cleaning Agent Chamber | 6 kg / bucket × 2 |
| Cleaning Agent Alarm | Alarm for lack of cleaning agent |
| Cleaning Temperature | 82 °C |
| Drying Power | 750 W |
| Hot Air Heating | 3000 W |
| Air Volume | 145 m³/h |
| Chamber Volume | 1200 L |
| Glass Dimensions | 1410 × 770 mm (W × H) |
| Inner Dimensions | 1550 × 750 × 1070 mm (W × D × H) |
| External Dimensions | 2050 × 900 × 1950 mm (W × D × H) |
Applications
Applications
Laboratory Animal Facility CleaningUsed in laboratory animal facilities to maintain hygienic conditions by efficiently washing cages and accessories used for housing research animals. |
Animal Cage WashingAutomated cleaning of animal cage boxes and cage covers using high-pressure spray and hot water to remove contaminants and residues. |
Rack CleaningDesigned for washing stainless steel racks used in animal housing systems, ensuring proper sanitation and reuse. |
Metal Grid CleaningEffective washing of metal grids and cage inserts used in laboratory animal cages to maintain hygiene and prevent contamination. |
Drinking Bottle CleaningAutomated washing of animal drinking bottles to ensure safe water supply for laboratory animals. |
Research and Vivarium FacilitiesIdeal for research laboratories, vivariums, and biotechnology facilities requiring automated cleaning of animal housing equipment. |
Animal Room Hygiene MaintenanceSupports maintaining a clean and controlled animal room environment to improve animal welfare and ensure reliable research conditions. |
