Reduced Manual LaborThe automated bedding adding process minimizes manual handling and significantly reduces operator workload in laboratory animal facilities. |
High Processing EfficiencyTwo filling ports allow the system to process approximately 30–40 mouse cages per minute, improving operational productivity. |
Accurate Bedding DispensingThe intelligent control system automatically calculates and dispenses the required amount of bedding material for each cage, ensuring uniform cage preparation. |
Dust Control SystemThe negative pressure dust removal system with H13 filtration reduces airborne particles and maintains a clean working environment. |
Improved Facility HygieneConsistent bedding filling helps maintain hygienic animal cages and supports improved animal welfare and reliable research conditions. |
Reliable Safety MonitoringIntegrated alarms for bedding level detection, motor overload, and fan overload ensure safe and reliable system operation. |

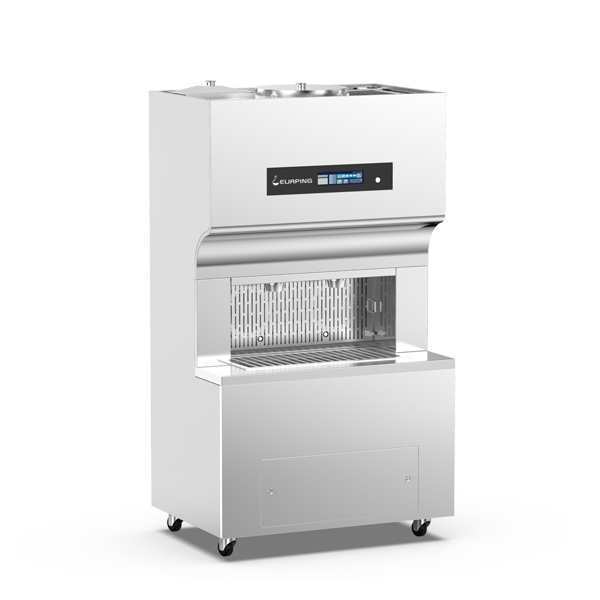

Eurping IVC-800 Automatic Bedding Adding System
The Eurping IVC-800 Automatic Bedding Adding System is designed for efficient and hygienic addition of animal bedding in laboratory animal facilities and vivariums. The system automatically loads, meters, and dispenses bedding material into animal cages, reducing manual handling and improving operational efficiency.
The equipment is equipped with a microcomputer control system and an 8.8-inch full-color touch screen, allowing operators to easily monitor machine status and adjust operating parameters. The display uses color indicators to show working status — red for malfunction, yellow for standby, and green for running.
The IVC-800 automatically senses bedding supply and performs loading, blanking, quantitative dispensing, and dust removal processes without manual intervention. A high-pressure vacuum fan delivers bedding material at controlled flow rates while maintaining a clean and dust-controlled working environment.
Benefits
Specifications
Specifications
| Technical Specification | IVC-800 |
|---|---|
| Control System | Microcomputer chip control |
| Touch Screen | 8.8-inch full-color touch screen |
| Display System | No less than 256-color display system |
| Status Indication | Red = malfunction, Yellow = standby, Green = running |
| Working Voltage | 220V |
| Power | 3000W |
| Automation Function | Automatic loading, blanking, quantitative filling, and dust removal |
| Blanking Detection | Automatically senses blanking |
| Adding Ports | 2 |
| Running Speed | 30–40 mouse cages per minute |
| Bedding Adding Capacity | 50 L/min |
| Vacuum Fan | High-pressure vacuum fan |
| Bedding Quantity Control | Program automatically calculates bedding quantity |
| Dust Removal | Negative pressure H13 filter dust removal |
| Dust Suction Ports | 2 suction ports on the back of the blanking port |
| Dust Fan Delay Stop | Dust suction fan stops after a delay once blanking stops |
| Lower Limit Sensor | Automatic alarm when bedding reaches lower limit |
| Alarm System | Motor and fan overload alarm system |
| Air Filtration System | Two-stage HEPA high efficiency air filtration system |
| Operating Table Height | ≤ 810 mm |
| Filling Height | ≤ 385 mm |
| External Dimensions (L × W × H) | 1118 × 781 × 1970 ±20 mm |
Applications
Applications
Laboratory Animal Facility CleaningUsed in laboratory animal facilities to maintain hygienic conditions by efficiently washing cages and accessories used for housing research animals. |
Animal Cage WashingAutomated cleaning of animal cage boxes and cage covers using high-pressure spray and hot water to remove contaminants and residues. |
Rack CleaningDesigned for washing stainless steel racks used in animal housing systems, ensuring proper sanitation and reuse. |
Metal Grid CleaningEffective washing of metal grids and cage inserts used in laboratory animal cages to maintain hygiene and prevent contamination. |
Drinking Bottle CleaningAutomated washing of animal drinking bottles ensures a clean and safe water supply for laboratory animals. |
Research and Vivarium FacilitiesIdeal for research laboratories, vivariums, and biotechnology facilities requiring automated cleaning of animal housing equipment. |
Animal Room Hygiene MaintenanceSupports maintaining a clean and controlled animal room environment to improve animal welfare and ensure reliable research conditions. |
