TDS Computer Controlled Teaching Unit for the Study of Digital Signal Processing

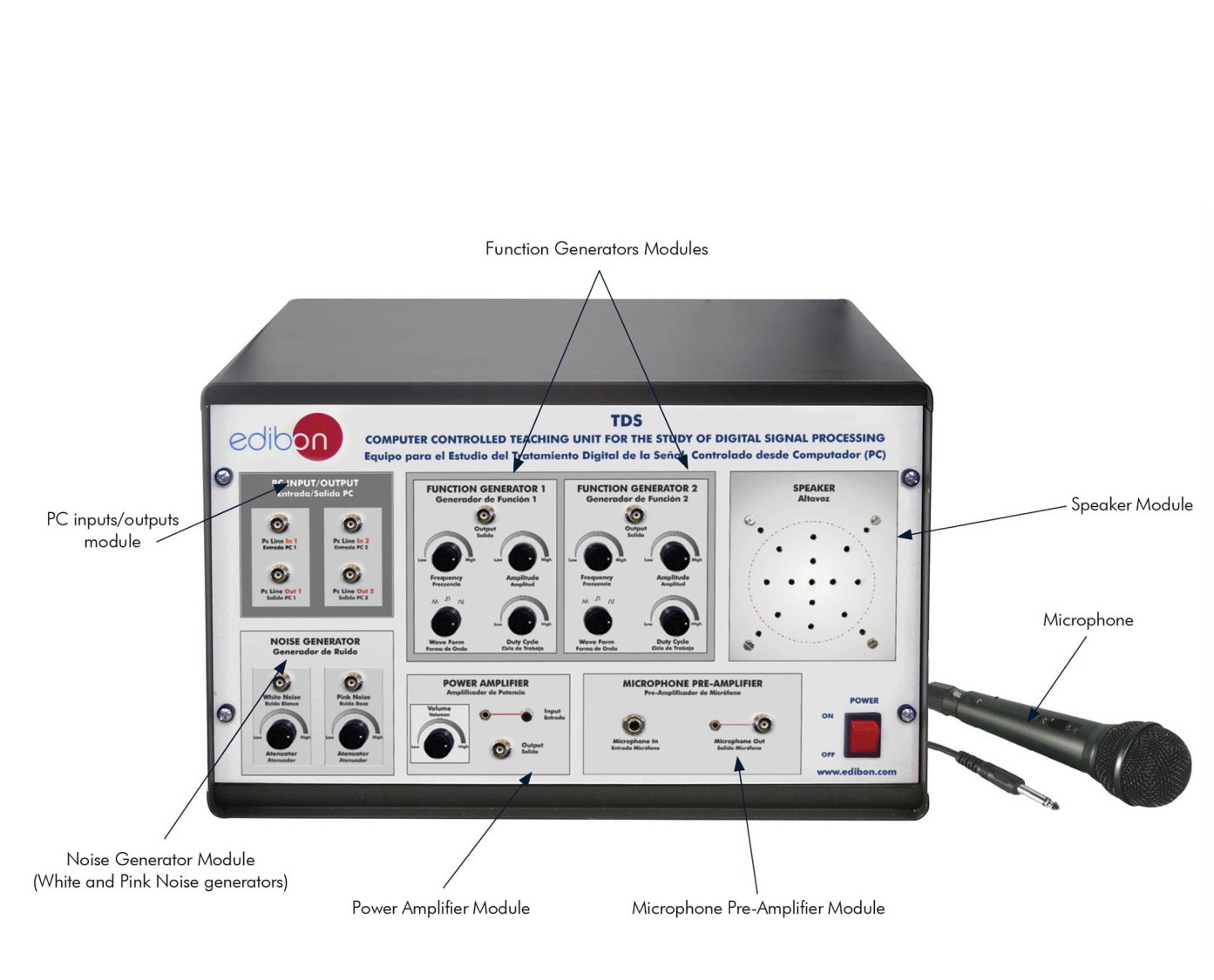

The TDS Computer Controlled Teaching Unit for the Study of Digital Signal Processing is an advanced educational system designed to provide practical understanding of digital signal processing and signal analysis. It enables students to generate, characterize, digitize and process different signals while studying their time and frequency responses. The unit supports experiments involving continuous waveforms, noise, signal arithmetic, Fast Fourier Transform (FFT), aliasing, and analog and digital filtering. It includes two function generators, noise generators, microphone and pre-amplifier, power amplifier and speaker modules. Computer-based control and data acquisition allow real-time visualization and analysis of experimental results, making TDS suitable for electronics, telecommunications and engineering education.
Benefits
Specifications
Specifications
- Product Model : TDS
- Product Name : Computer Controlled Teaching Unit for the Study of Digital Signal Processing
- System Type : Computer-controlled digital signal processing training system
- Function Generators : 2 modules
- Waveforms : Sine, triangle and square
- Noise Generators : White noise and pink noise
- Microphone System : Microphone and microphone pre-amplifier
- PC Interface : 2 BNC signal inputs and 2 BNC signal outputs
- Power Amplifier : Included with adjustable amplification
- Speaker : Included for signal and noise listening
- Signal Processing : Signal digitalization, sampling, FFT, signal addition, subtraction and multiplication
- Filtering : FIR, IIR and analog filters including Butterworth and Chebyshev
- Window Functions : Bartlett, Hanning, Hamming, Kaiser and Parzen
- Control System : EDIBON Computer Control System (SCADA)
- Data Acquisition : Data Acquisition Board

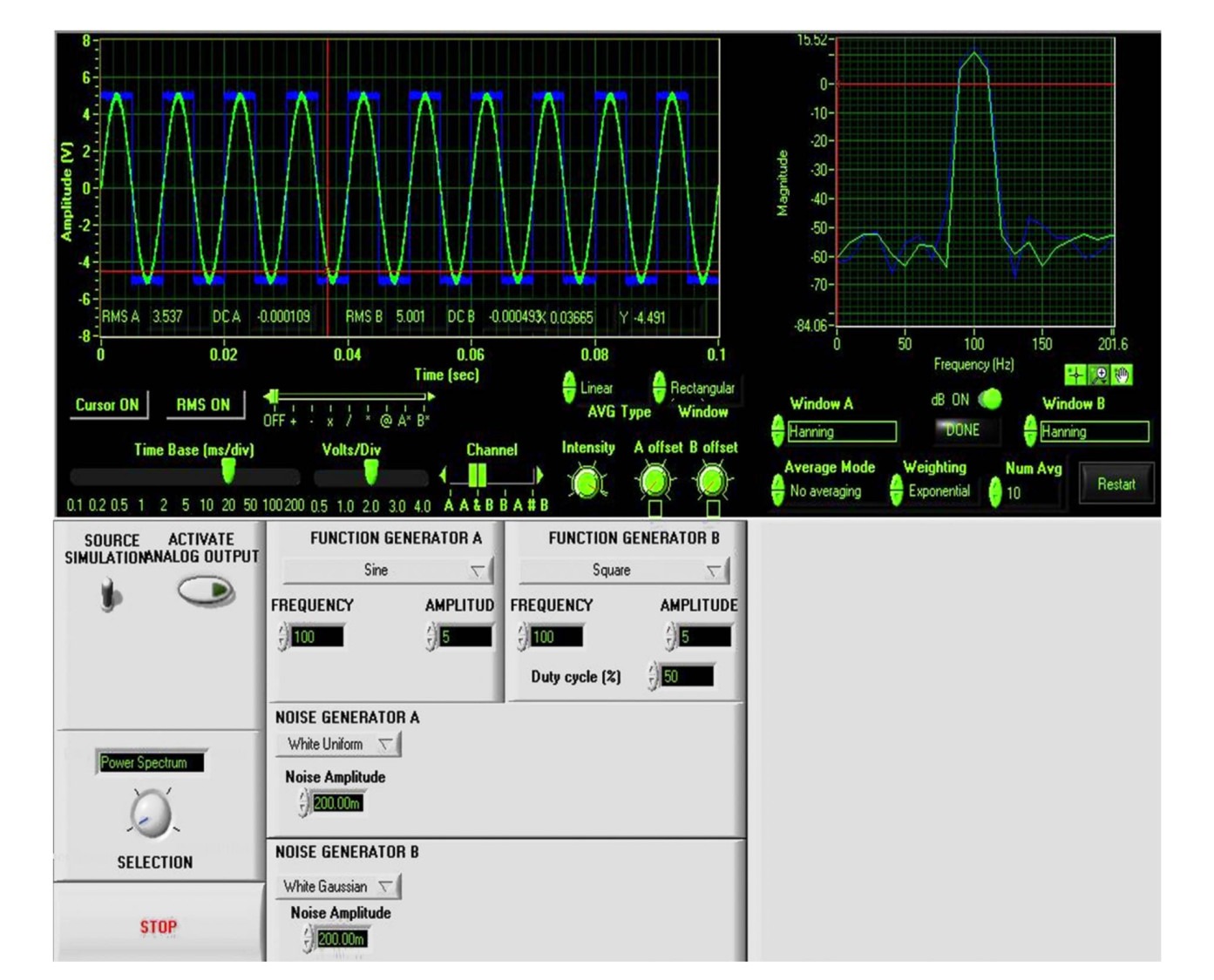

- Software : Computer Control, Data Acquisition and Data Management Software Packages
- Connections : RF coaxial cable assembly
- Applications : Digital signal processing, electronics, telecommunications and signal analysis
- Expansion : ICAI Interactive Computer Aided Instruction Software, ELK EDIBON Software Development KIT powered by NI LabVIEW™, and ESN EDIBON SCADA-Net
