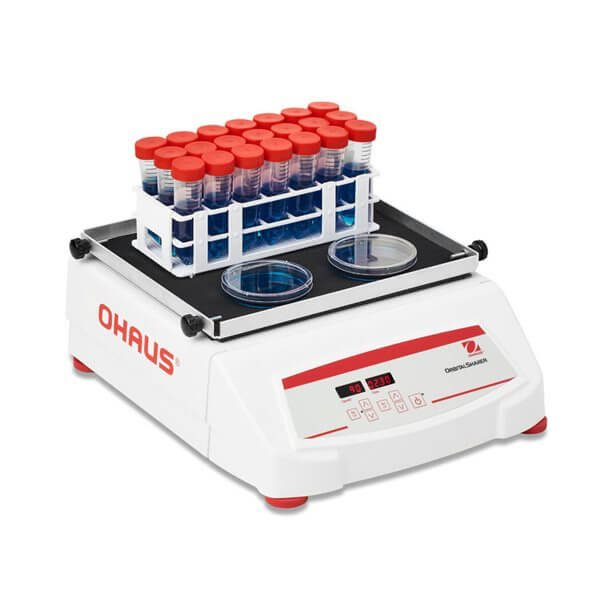

Heavy Duty Orbital Shakers
OHAUS Heavy Duty Shakers are built to handle a wide range of demanding laboratory applications. With powerful and consistent orbital shaking action, digital models deliver accurate speed control for repeatable results, while non-digital models offer a cost-effective alternative.
Choose from eight models with load capacities ranging from 16 to 68 kg, giving you the flexibility to maximize throughput and efficiency in your laboratory no matter the task.
Benefits
Models
Models

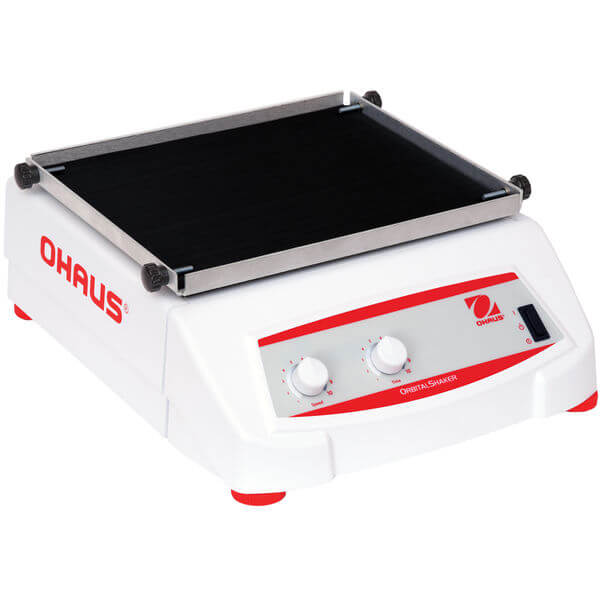

 Model : SHHD1619ALMotion : Orbital, 19 mm Speed Range : 25 rpm – 500 rpm |  Model : SHHD1619DGMotion : Orbital, 19 mm Speed Range : 15 rpm – 500 rpm |

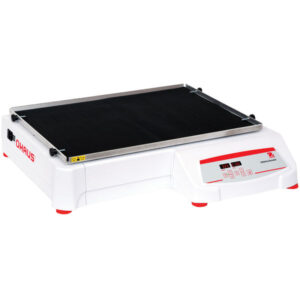

 Model : SHHD2325ALMotion : Orbital, 25 mm Capacity : 22.7 kg Speed Range : 25 rpm – 500 rpm |  Model : SHHD2325DGMotion : Orbital, 25 mm Capacity : 22.7 kg Speed Range : 20 rpm – 500 rpm |

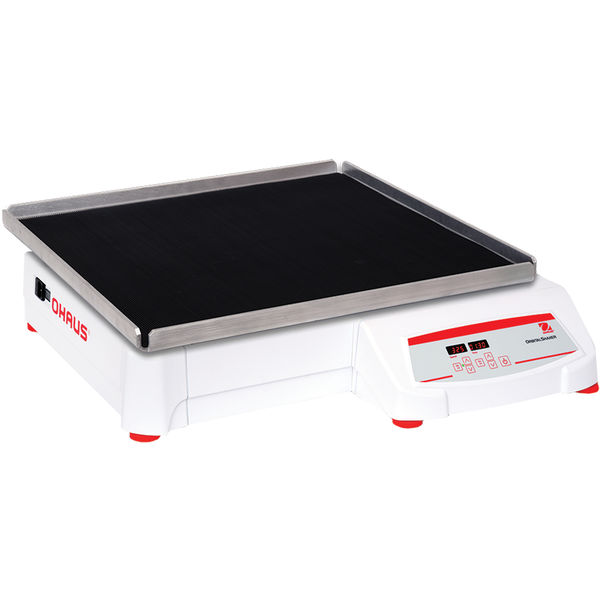

 Model : SHHD4525DGMotion : Orbital, 25 mm Capacity : 45.4 kg Speed Range : 15 rpm – 500 rpm |  Model : SHHD4550DGMotion : Orbital, 51 mm Capacity : 45.4 kg Speed Range : 15 rpm – 300 rpm |

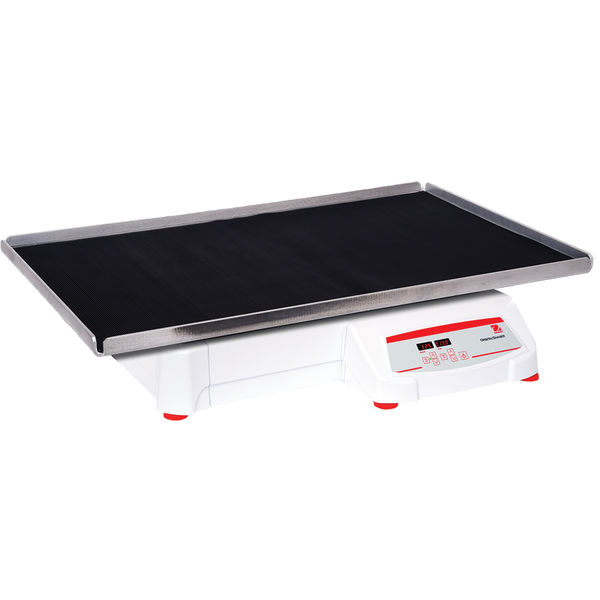

 Model : SHHD6825DGMotion : Orbital, 25 mm Capacity : 468 kg Speed Range : 15 rpm – 500 rpm |  Model : SHHD6850DGMotion : Orbital, 51 mm Capacity : 68 kg Speed Range : 15 rpm – 300 rpm |
Specifications
Specifications
| Model | SHHD1619AL | SHHD1619DG | SHHD2325AL | SHHD2325DG | SHHD4525DG | SHHD4550DG | SHHD6825DG | SHHD6850DG | |
| Control | Analog | Digital | Analog | Digital | |||||
| Motion | Orbital, 19 mm | Orbital, 25 mm | Orbital, 51 mm | Orbital, 25 mm | Orbital, 51 mm | ||||
| Speed Range | 25 to 500 rpm | 15 to 500 rpm | 25 to 500 rpm | 20 to 500 rpm | 15 to 500 rpm | 15 to 300 rpm | 15 to 500 rpm | 15 to 300 rpm | |
| Speed Accuracy | N/A | above 100 rpm ± 1% of set speed, below 100 rpm ± 1 rpm | N/A | above 100 rpm ± 1% of set speed, below 100 rpm ± 1 rpm | |||||
| Timer | 1 minute to 120 minutes | 1 second to 160 hours | 1 minute to 120 minutes | 1 second to 160 hours | |||||
| Max. Weight Capacity | 16 kg at 75 rpm linearly down to 2.3 kg at 500 rpm | 23 kg at 125 rpm linearly down to 4.5 kg at 500 rpm | 45 kg at 125 rpm linearly down to 18 kg at 300 rpm | 68 kg at 125 rpm linearly down to 18 kg at 300 rpm | |||||
| Audible Alarm | — | • | — | • | • | • | • | • | |
| Load Sensor | — | • | — | • | • | • | • | • | |
| Overload Protection | — | • | — | • | • | • | • | • | |
| User Calibration (Speed) | — | • | — | • | • | • | • | • | |
| RS232 Interface | — | • | — | • | • | • | • | • | |
| Working Environment | 0 °C – 40 °C, 80% RH*, non-condensing | -10 °C – 60 °C, 80% RH, non-condensing | 0 °C – 40 °C, 80% RH, non-condensing | -10 °C – 60 °C, 80% RH, non-condensing | |||||
| Drive System | Brushless DC Motor; Triple Eccentric | ||||||||
| Included Tray (L × W) | 279 × 330 mm | 457 × 610 mm | 610 × 610 mm | 610 × 910 mm | |||||
| Overall Dimensions (L × W × H) | 413 × 355 × 149 mm | 610 × 678 × 149 mm | 729 × 678 × 170 mm | 744 × 914 × 170 mm | |||||
| Net Weight | 21.8 kg | 49 kg | 90.3 kg | 103.9 kg | |||||
| Power | 230V, 2.5A, 50/60Hz | ||||||||
| Power Consumption | 75 W | 80 W | |||||||
