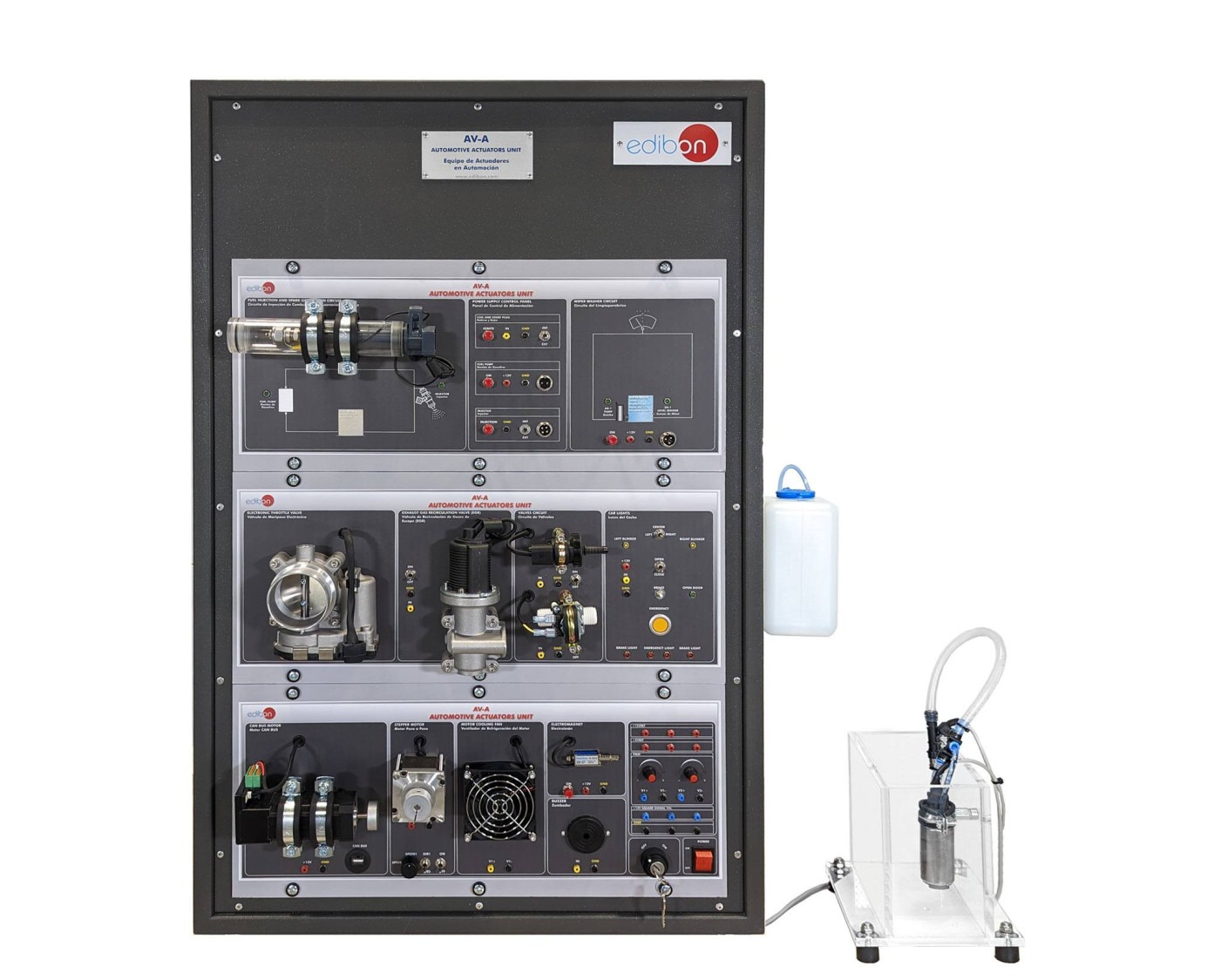

AV-A Automotive Actuators Unit
The AV-A Automotive Actuators Unit is a practical training system designed to help students understand the operation and control of actuators used in modern automotive systems. It incorporates real automotive actuators and components for hands-on study of engine ignition, DC power supply, motorized systems, solenoids and electromagnets. The actuator circuits are individually isolated, allowing students to study each function separately and access signals through standard 2 mm laboratory sockets. The unit supports digital, analog, PWM and CAN bus control signals and can also be connected to the AV-ECD Automotive Electronic Control Device Unit for ECU-based control. It is ideal for automotive engineering, electronics and technical training laboratories.
Benefits
Specifications
Specifications
- Product Model : AV-A
- Product Name : Automotive Actuators Unit
- System Type : Automotive actuator training system
- Main Components : Ignition coil, spark plug, fuel injection solenoid, EGR valve, electronic throttle valve, canister-purge solenoid valve and fuel pump
- Motorized Systems : DC motor, cooling fan and wiper washer pump
- Other Components : Car horn, electromagnet and automotive lighting system
- Control Signals : Digital, analog and PWM signals
- Communication : CAN bus protocol
- Connection Points : Standard 2 mm laboratory sockets
- Circuit Design : Individually isolated actuator circuits
- Dimensions : Approximately 640 × 320 × 1000 mm
- Weight : Approximately 50 kg
- Optional Expansion : ICAI Interactive Computer Aided Instruction Software
- Compatible Unit : AV-ECD Automotive Electronic Control Device Unit
