- Coulometric sensor method design
- Film and packaging testing
- One-button test, fully automatic test
- Multiple test modes available
- Computer operation
- Chamber with built-in temperature sensor
- Internal environment temperature and humidity sensor
- Wide testing range:0.01-6500 cm3/m2d (Film)
- Temperature range: 5℃–95℃
- Humidity range: 0%RH, 35%RH-90%RH

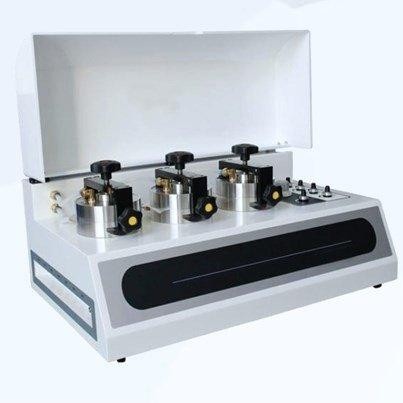

Automatic Oxygen Permeability Tester
Model: AOPT-301

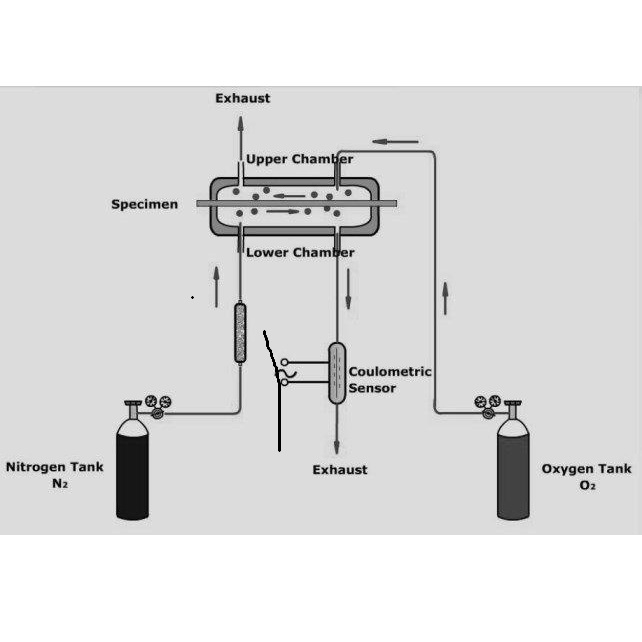

AOPT-301 is based on the coulometric sensor method and is available for the OTR testing of flexible films, sheeting and packages. It can test 3 specimens in one operation with independent results.
Films: Plastic films, aluminum foil, aluminized films, plastic composite films, paper-plastic composite films, coextruded films, aluminum foil composite films and others.
Packages: Plastic, rubber, paper, paper-plastic composite, glass and metal packages, e.g. red wine bottles, blister, various plastic bottles, Coke bottles, peanut oil packages, Tetra Pak materials, vacuum bags, metal three-piece cans, plastic packages for cosmetic, soft tubes for toothpaste, jelly and yogurt cups.
Benefits
Specifications
Specifications
| Model | AOPT-301 |
| Specimen Chamber | 3 |
| Test range | Film:
Package:
|
| Temperature range | 5°C ~ 95°C |
| Temperature accuracy | ±0.1°C |
| Humidity range | 0%RH, 35%RH ~ 90%RH, 100%RH |
| Humidity accuracy | ±1%RH |
| Test area | 50cm2 |
| Specimen size | Film: size:>=150mm * 94mm; thickness: less 1mm
Package: max size: D 120mm x 400mm |
| Carrier gas | 99.999% Nitrogen |
| Carrier flow | 0 ~ 20 ml/min |
| Gas interface | 1/8” |
| Dimension | 730mm (L) x 590mm (W) x 350mm (H) |
