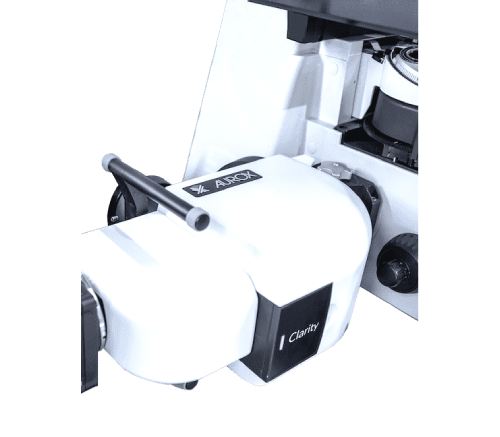

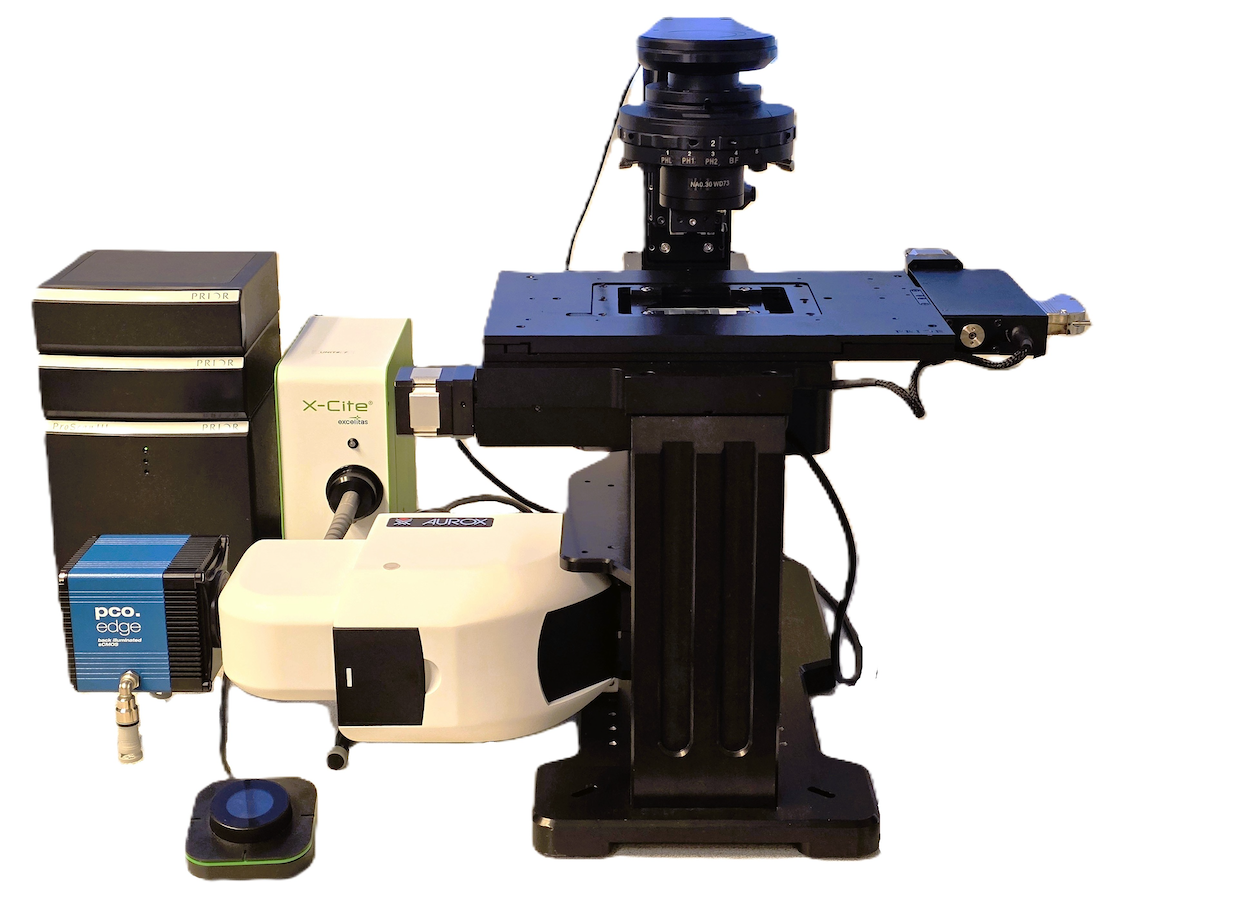

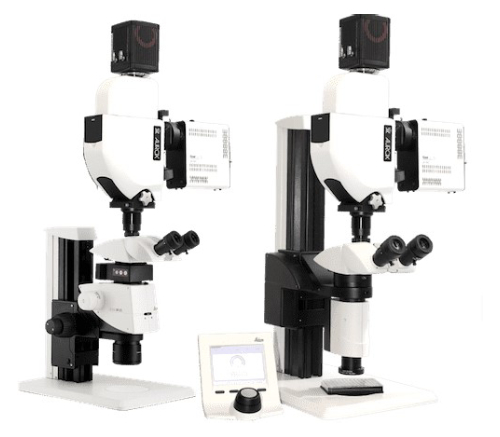

Aurox Clarity Laser-Free Confocal Imaging System

The Aurox Clarity is a compact and affordable laser-free confocal imaging upgrade designed for existing fluorescence microscopes. Using Aurox’s patented structured illumination and detection technology, it produces high-resolution confocal images without requiring a conventional laser-based system.

Clarity can be installed on many upright and inverted microscopes from leading manufacturers. It supports compatible sCMOS and CCD cameras, LED or metal-halide light sources, and four user-changeable filter cubes. The included Visionary software enables z-stack, time-lapse, multi-channel, multi-position and mosaic imaging through one simple interface. Its compact and adaptable design makes it suitable for life science, medical and materials research.

- +

Benefits of the Clarity

    • Upgrades an existing microscope to confocal imaging.
    • Avoids the cost of purchasing a complete confocal microscope.
    • Eliminates laser-safety restrictions and specialist laser training.
    • Reduces photobleaching and phototoxicity during live-cell imaging.
    • Lowers maintenance requirements and operating costs.
    • Produces high-resolution images with improved optical sectioning.
    • Enables faster imaging of dynamic biological processes.
    • Adapts easily to different microscopes, cameras and applications.
    • Simplifies complex experiments through intuitive software control.
    • Saves laboratory space with its compact and lightweight design.
    • Supports multi-dimensional and multi-colour imaging workflows.
    • Makes confocal imaging more accessible to different laboratory users.

Features

Features of the Clarity

    • Patented structured illumination and detection technology
    • Laser-free confocal imaging
    • Three adjustable optical-sectioning modes
    • Confocal, wide-field and bright-field imaging modes
    • Compatible with upright and inverted microscopes
    • Standard microscope C-mount connection
    • Support for sCMOS and CCD cameras
    • Four-position filter-cube turret
    • Quick, user-changeable filter cubes
    • Excitation range from 370 to 700 nm
    • Emission range from 410 to 750 nm
    • Z-stack and time-lapse imaging
    • Multi-channel and multi-position acquisition
    • Mosaic imaging and image tiling
    • Maximum frame rate of up to 50 fps
    • Up to 100 fps with the ClarityHS version
    • Compact dimensions and 6 kg weight
    • Visionary control and image-acquisition software
