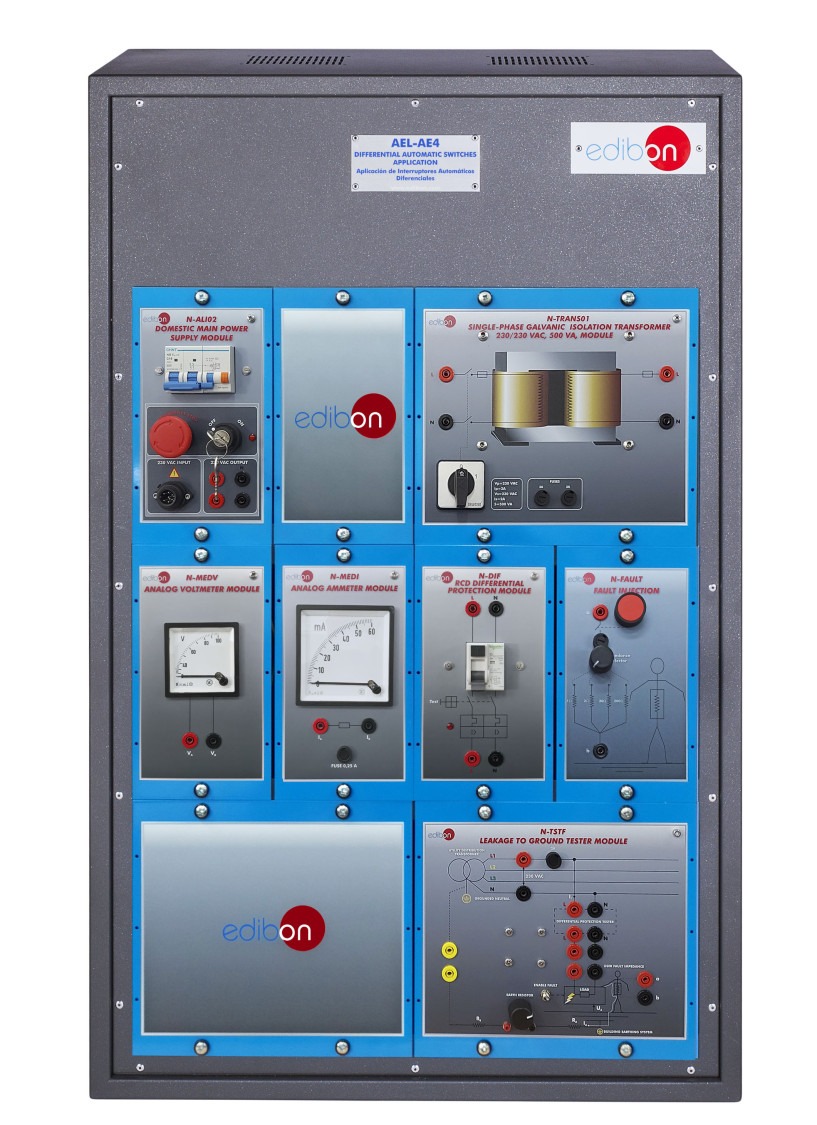

AEL-AE4 Differential Automatic Switches Application
The AEL-AE4 Differential Automatic Switches Application is an educational training system designed to provide practical understanding of differential protection and earth leakage faults in electrical installations. It enables students to study how a differential protection switch operates when an earth leakage occurs and to investigate its sensitivity under different fault conditions. The application uses a variable resistor load to create controlled earth leakage faults, allowing users to determine the trip current threshold of the differential switch. Integrated measuring instruments, including an analog voltmeter and ammeter, support the measurement of fault currents and contact voltages. AEL-AE4 is suitable for technical, vocational and higher-education electricity laboratories, providing hands-on training in electrical protection and fault analysis.
Benefits
Specifications
Specifications
- Product Model : AEL-AE4
- Product Name : Differential Automatic Switches Application
- System Type : Electrical protection and fault analysis training system
- Main Application : Study of differential protection and earth leakage faults
- Protection Device : Differential protection switch
- Fault Generation : Variable resistor load for controlled earth leakage
- Measurement Instruments : Analog voltmeter and analog ammeter
- Protection Testing : Tester protection module
- Fault Simulation : Fault injection module
- Main Measurement : Differential switch trip current threshold
- Fault Studies : Earth leakage faults with variable earth impedance
- Protection Studies : Basic differential protection and protection sensitivity
- Voltage Measurement : Contact voltage with different contact impedance
- Current Measurement : Earth leakage currents with different contact impedance
- Power Supply : Main power supply verification
- Isolation : Single-phase transformer with galvanic isolation
- Practical Exercises : Power supply verification, transformer operation, differential protection, sensitivity, earth leakage, contact voltage and leakage-current measurements
- Additional Experiments : User-designed practical exercises
- Expansion : ICAI Interactive Computer Aided Instruction Software
- Applications : Electrical protection, home electrical installations, earth leakage testing and electrical fault analysis
- Suitable Laboratories : Technical and Vocational Education Electricity Laboratory, Higher Education Electricity Laboratory and Petroleum Training Center Laboratory
